Home Solar Energy Storage System Deye Inverter And Battery
deye inverter and battery on stock
MOQ is low,more quantity,better price
we are deye’s official distributors
pls send inquires to get more discount!
Description
Deye inverter single phase and three phase EU version

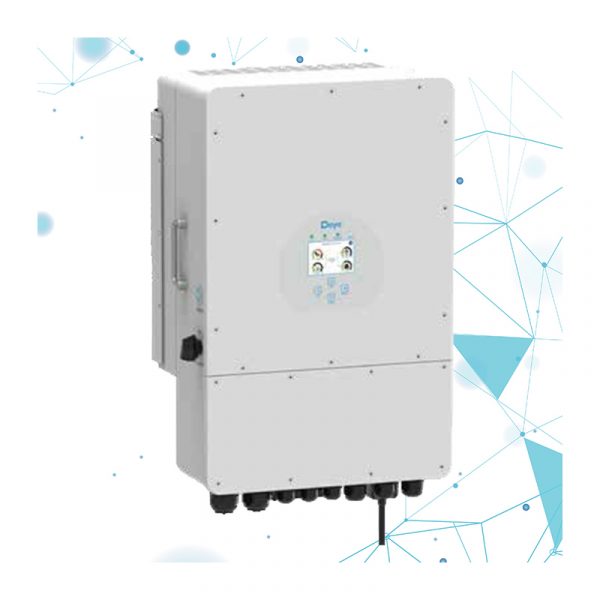

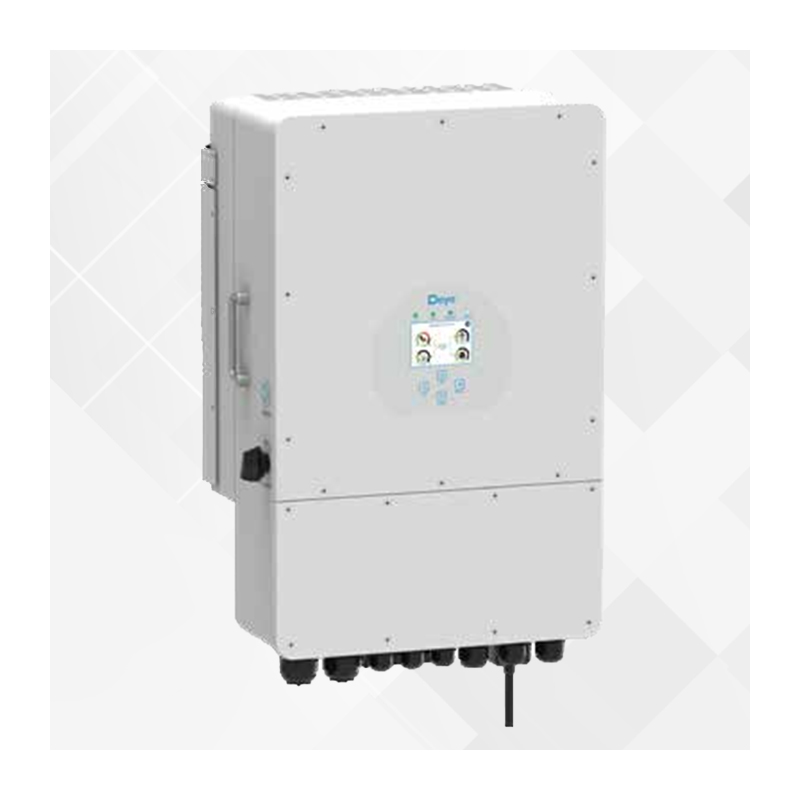

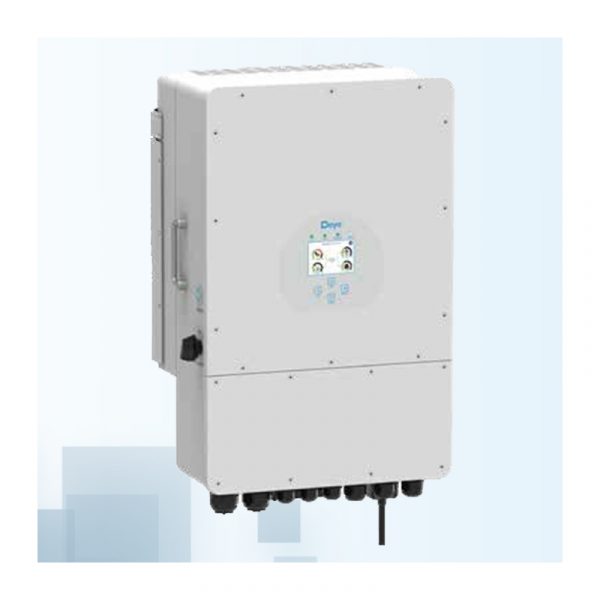

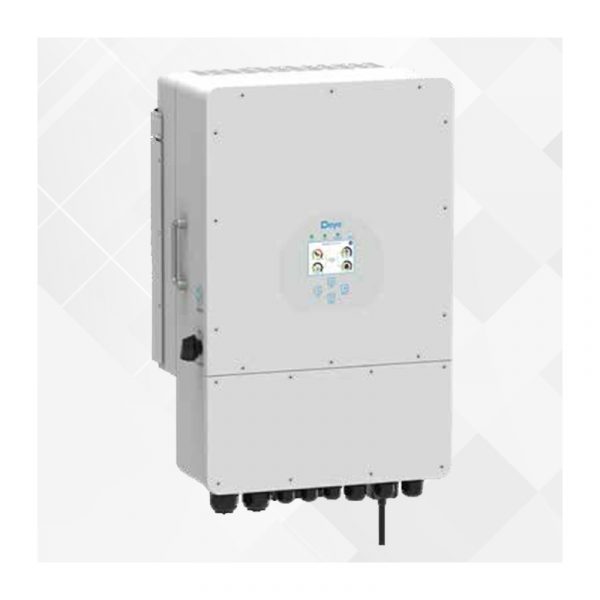

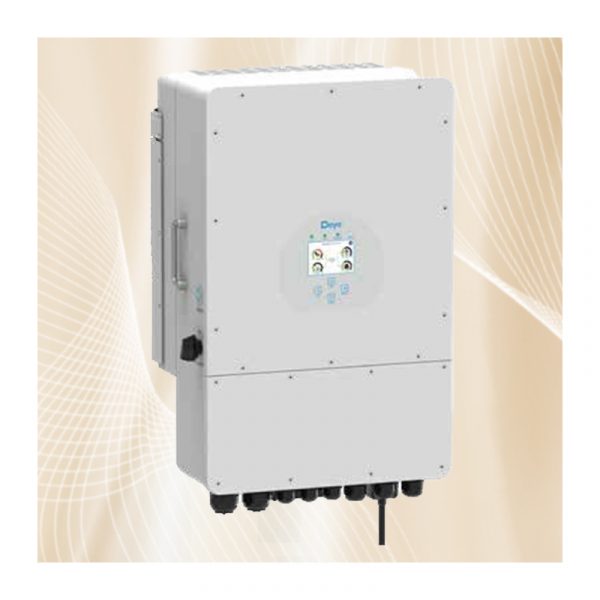

deye hybrid inverter
parameter
|
Model
|
SUN-5K
-SG04LP3-EU |
SUN-6K
-SG04LP3-EU |
SUN-8K
-SG04LP3-EU |
SUN-10K
-SG04LP3-EU |
SUN-12K
-SG04LP3-EU |
|
Battery Input Data
|
|||||
|
Battery Type
|
Lead-acid or Li-lon
|
||||
|
Battery Voltage Range (V)
|
40~60
|
||||
|
Max. Charging Current (A)
|
120
|
150
|
190
|
210
|
240
|
|
Max. Discharging Current (A)
|
120
|
150
|
190
|
210
|
240
|
|
External Temperature Sensor
|
Yes
|
||||
|
Charging Curve
|
3 Stages / Equalization
|
||||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
||||
|
PV String Input Data
|
|||||
|
Max. DC Input Power (W)
|
6500
|
7800
|
10400
|
13000
|
15600
|
|
Rated PV Input Voltage (V)
|
550 (160~800)
|
||||
|
Start-up Voltage (V)
|
160
|
||||
|
MPPT Voltage Range (V)
|
200-650
|
||||
|
Full Load DC Voltage Range (V)
|
350-650
|
||||
|
PV Input Current (A)
|
13+13
|
26+13
|
|||
|
Max. PV ISC (A)
|
17+17
|
34+17
|
|||
|
Number of MPPT / Strings per MPPT
|
2/1+1
|
2/2+1
|
|||
|
AC Output Data
|
|||||
|
Rated AC Output and UPS Power (W)
|
5000
|
6000
|
8000
|
10000
|
12000
|
|
Max. AC Output Power (W)
|
5500
|
6600
|
8800
|
11000
|
13200
|
|
AC Output Rated Current (A)
|
7.6
|
9.1
|
12.1
|
15.2
|
18.2
|
|
Max. AC Current (A)
|
11.4
|
13.6
|
18.2
|
22.7
|
27.3
|
|
Max. Continuous AC Passthrough (A)
|
45
|
||||
|
Peak Power (off grid)
|
2 time of rated power, 10 S
|
||||
|
Power Factor
|
0.8 leading to 0.8 lagging
|
||||
|
Output Frequency and Voltage
|
50/60Hz; 3L/N/PE 220/380, 230/400Vac
|
||||
|
Grid Type
|
Three Phase
|
||||
|
DC injection current (mA)
|
THD<3% (Linear load<1.5%)
|
||||
|
Protection
|
|||||
|
Integrated |
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation ResistorDetection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection
|
||||
|
Certifications and Standards
|
|||||
|
Grid Regulation
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
VDE 0126-1-1, RD 1699, C10-11
|
||||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||||
|
General Data
|
|||||
|
Operating Temperature Range (℃)
|
-45~60℃, >45℃ derating
|
||||
|
Cooling
|
Smart cooling
|
||||
|
Noise (dB)
|
<45 dB
|
||||
|
Communication with BMS
|
RS485; CAN
|
||||
|
Weight (kg)
|
33.6
|
||||
|
Size (mm)
|
422W x 699.3H x279D
|
||||
|
Protection Degree
|
IP65
|
||||
|
Installation Style
|
Wall-mounted
|
||||
|
Warranty
|
5 years
|
||||

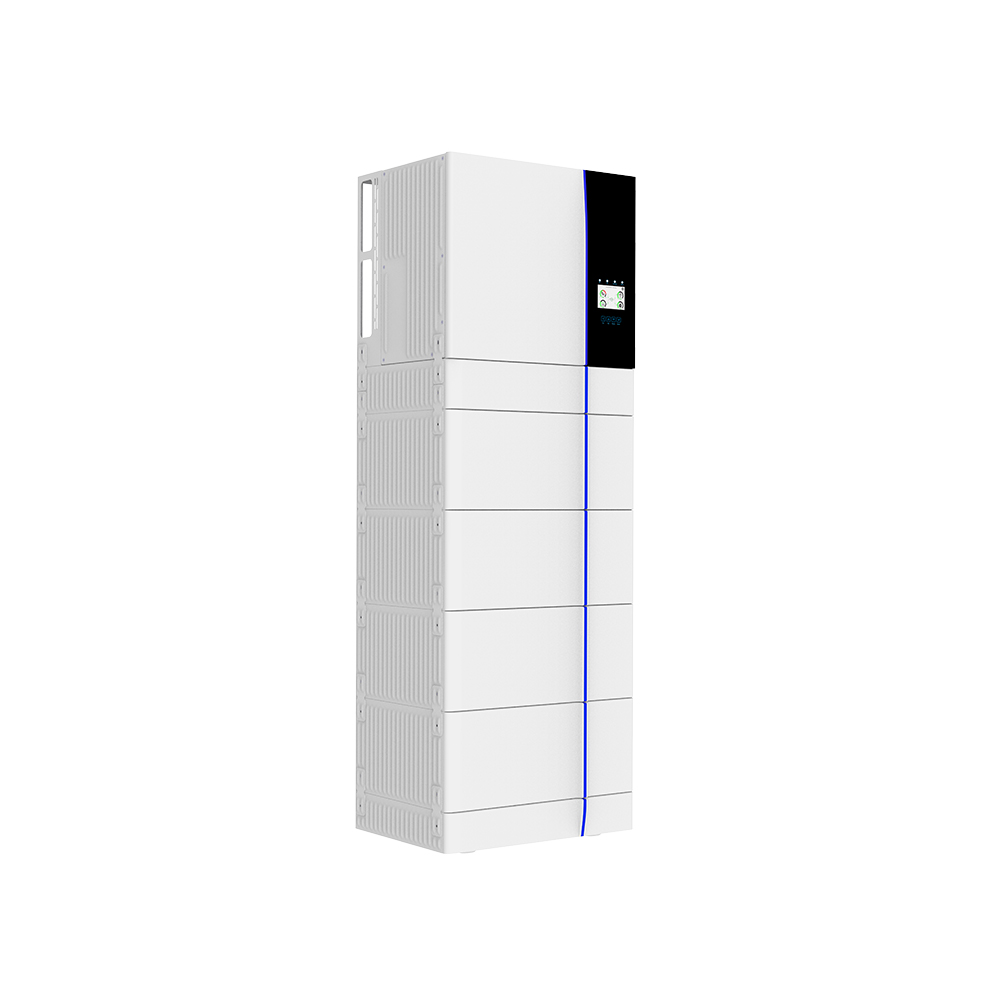

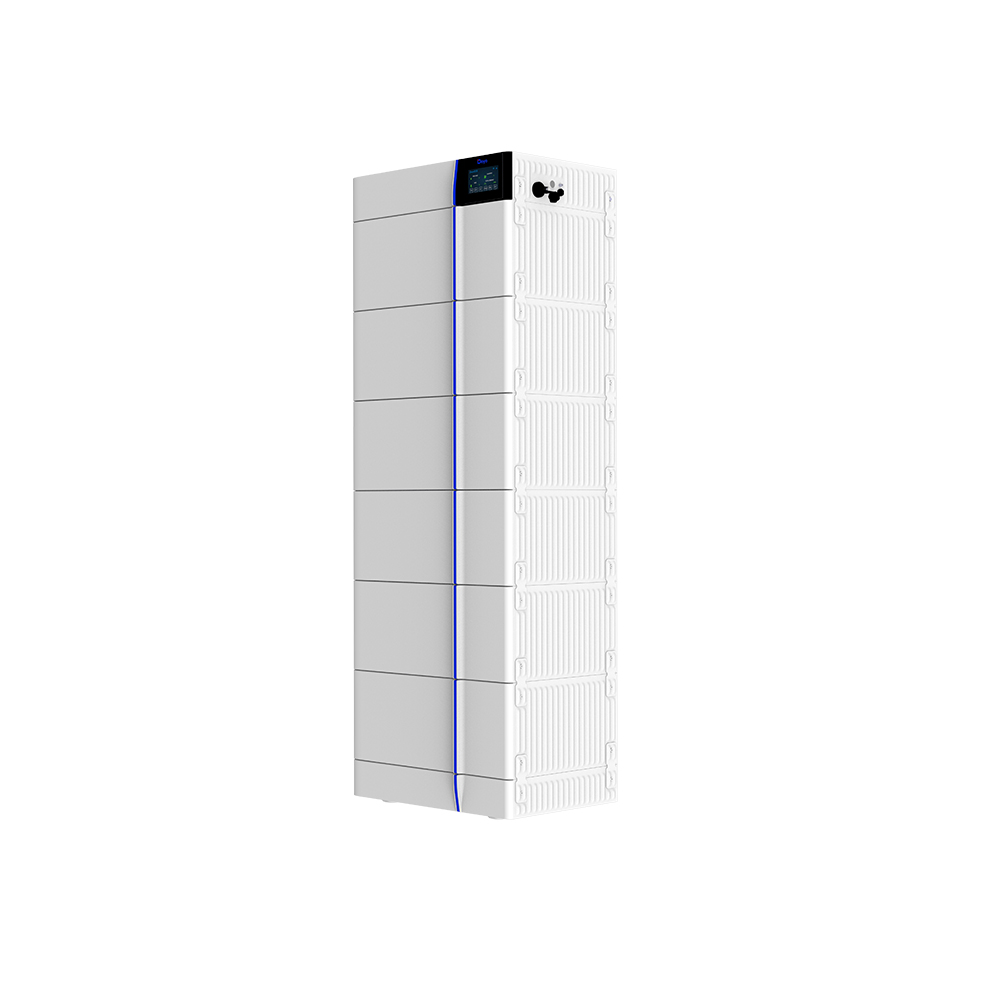

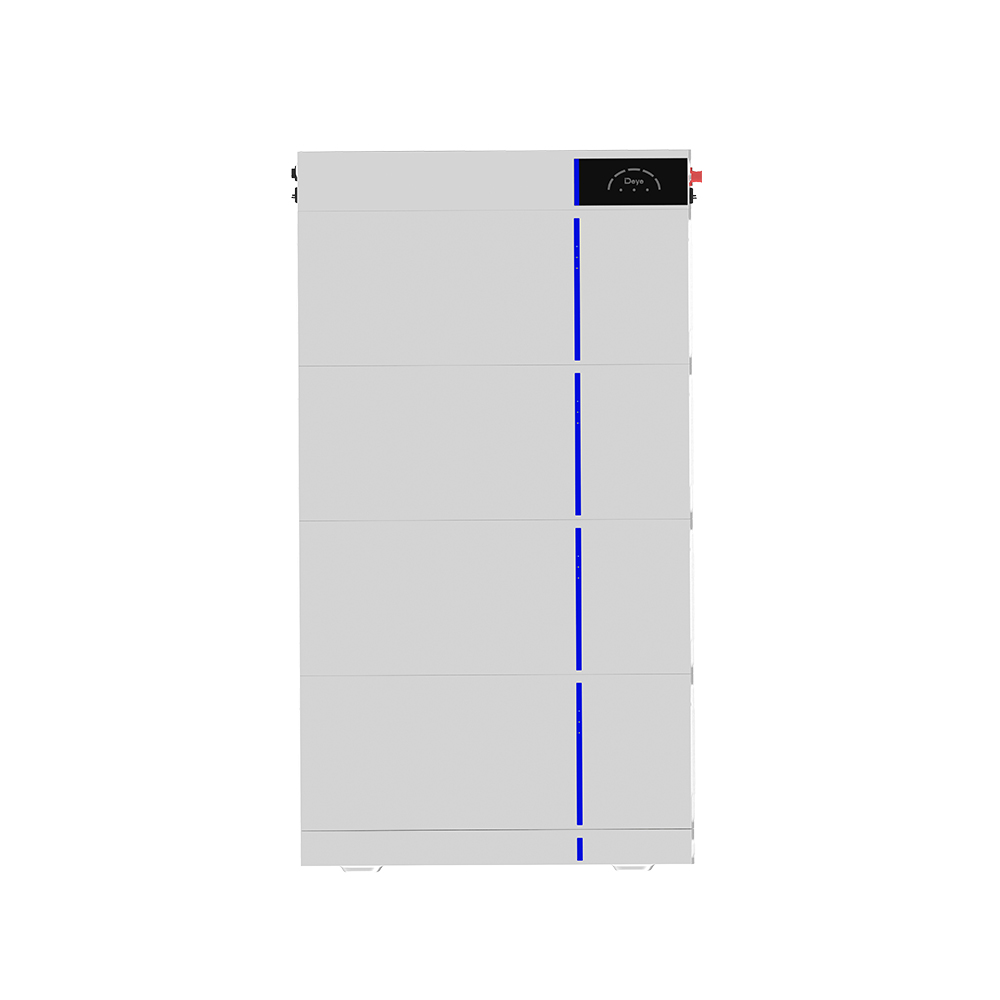

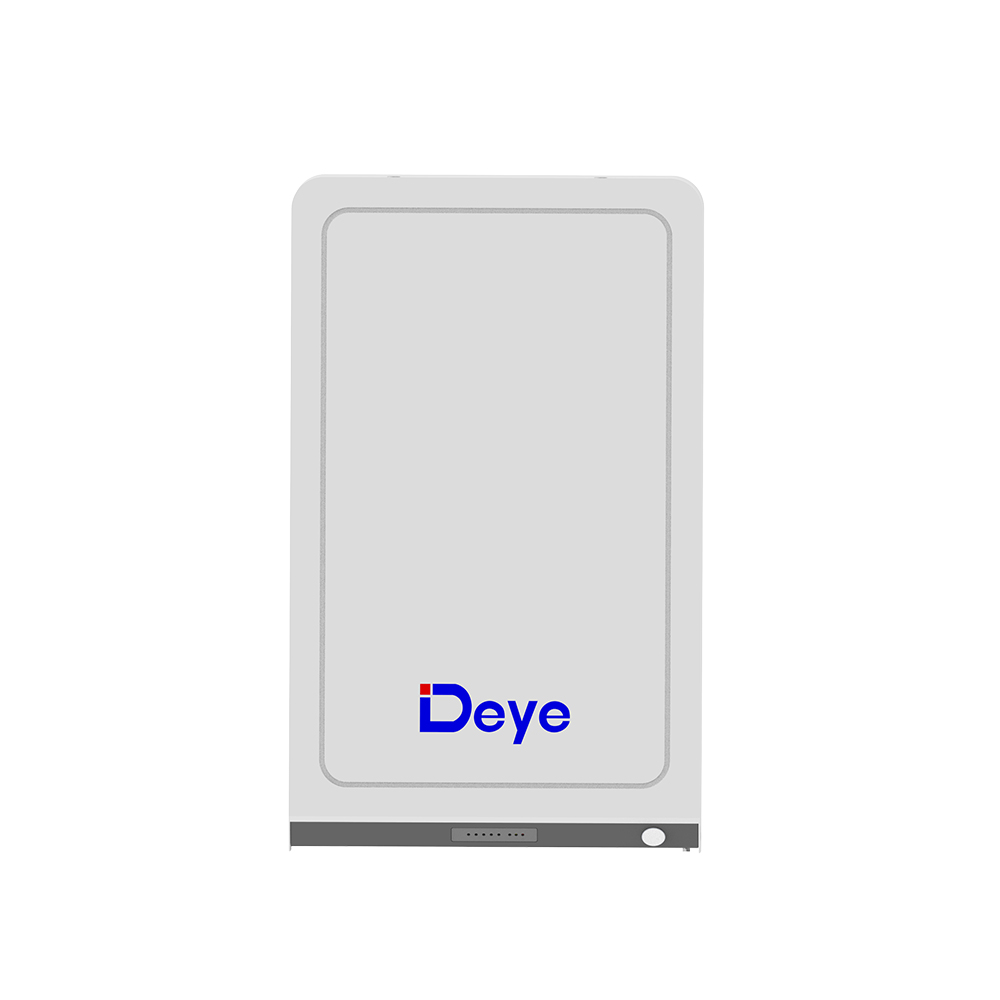

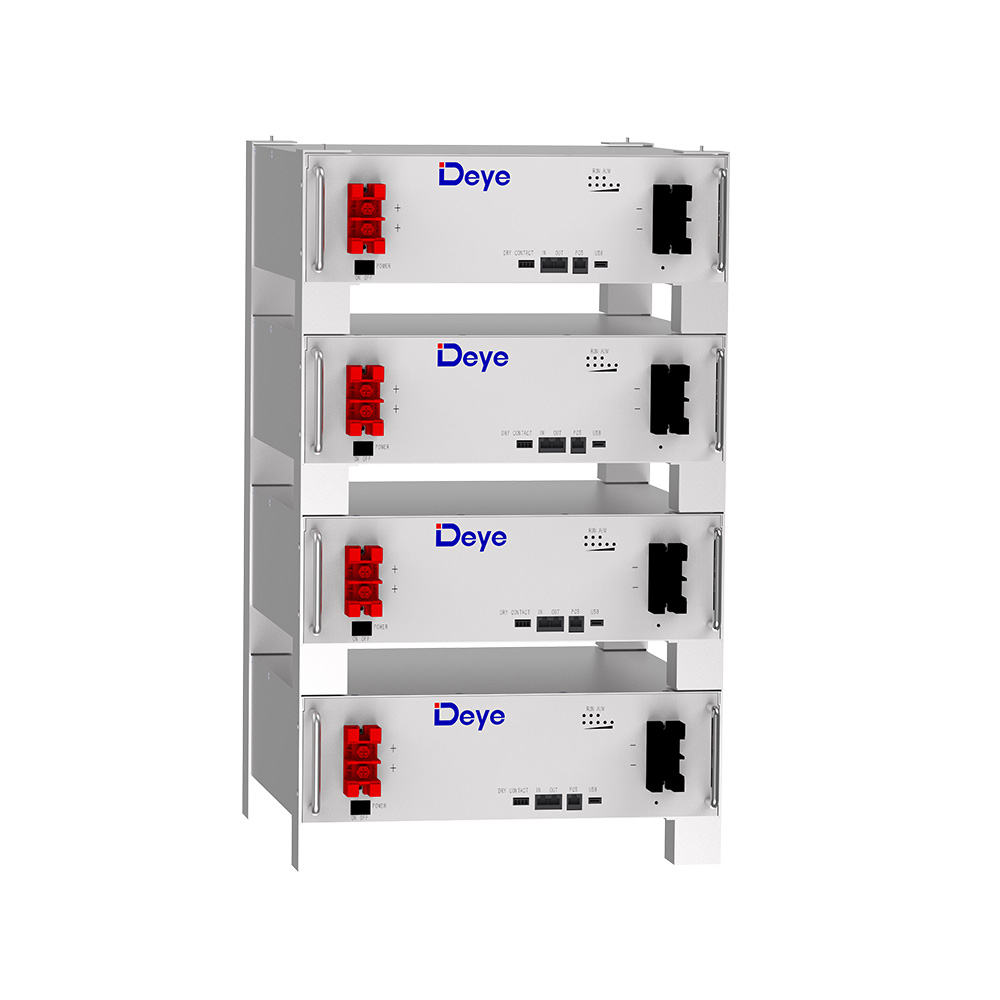

deye battery
parameter
|
Model
|
AI-W5.1
|
|||||
|
Main Parameter
|
||||||
|
Battery Chemistry
|
LiFePO4
|
|||||
|
Battery Module Energy (kWh)
|
5.12
|
|||||
|
Battery Module Voltage (V)
|
51.2
|
|||||
|
Battery Module Capacity (Ah)
|
100
|
|||||
|
Scalability
|
2
|
3
|
4
|
5
|
6
|
|
|
Nominal Voltage (V)
|
51.2
|
|||||
|
Operating Voltage(V)
|
43.2~57.6
|
|||||
|
Energy (kWh)
|
10.24
|
15.36
|
20.48
|
25.6
|
30.72
|
|
|
Usable Energy (kWh) 1
|
9.2
|
13.8
|
18.4
|
23.0
|
27.6
|
|
|
Charge/Discharge
Current (A) |
Recommend2
|
100
|
150
|
200
|
200
|
200
|
|
Max. 2
|
180
|
210
|
240
|
250
|
250
|
|
|
Peak(10s,25℃)
|
270
|
315
|
360
|
360
|
360
|
|
|
Other Parameter
|
||||||
|
Recommend Depth of Discharge
|
90%
|
|||||
|
System Dimension (W/D/H, mm)
|
720*255*770
|
720*255*1055
|
720*255*1340
|
720*255*1625
|
720*255*1910
|
|
|
System Weight (kg)
|
117
|
163
|
209
|
255
|
301
|
|
|
Battery Module Dimension(W/D/H, mm)
|
720*255*285
|
|||||
|
Battery Module Weight (kg)
|
53
|
|||||
|
Master LED Indicator
|
5LED(SOC:20%~100%), 3LED (working, alarming, protecting)
|
|||||
|
IP Rating of Enclosure
|
IP65
|
|||||
|
Operating Temperature
|
Charge: 0～55℃ / Discharge: -20℃～55℃
|
|||||
|
Storage Temperature
|
0～35℃
|
|||||
|
Humidity
|
5%~95%
|
|||||
|
Altitude
|
≤2000m
|
|||||
|
Cycle Life 3
|
≥6000(25℃±2℃,0.5C/0.5C,70%EOL
|
|||||
|
Installation
|
Floor-Mounted, Wall-Mounted
|
|||||
|
Communication Port
|
CAN2.0, RS485
|
|||||
|
Warranty Period 3
|
10 years
|
|||||
|
Energy Throughput 3
|
16MWh(Battery Module @70%EOL)
|
|||||
|
Certification
|
IEC62619, CE,VDE2510-10, CEI 0-21, UN38.3
|
|||||
